PMI testing is a non-destructive method of material identification based on the analysis of the chemical composition of metal alloys using X-ray fluorescence (XRF) spectrometry or optical emission spectrometry (OES).

View Our Services
Badania PMI

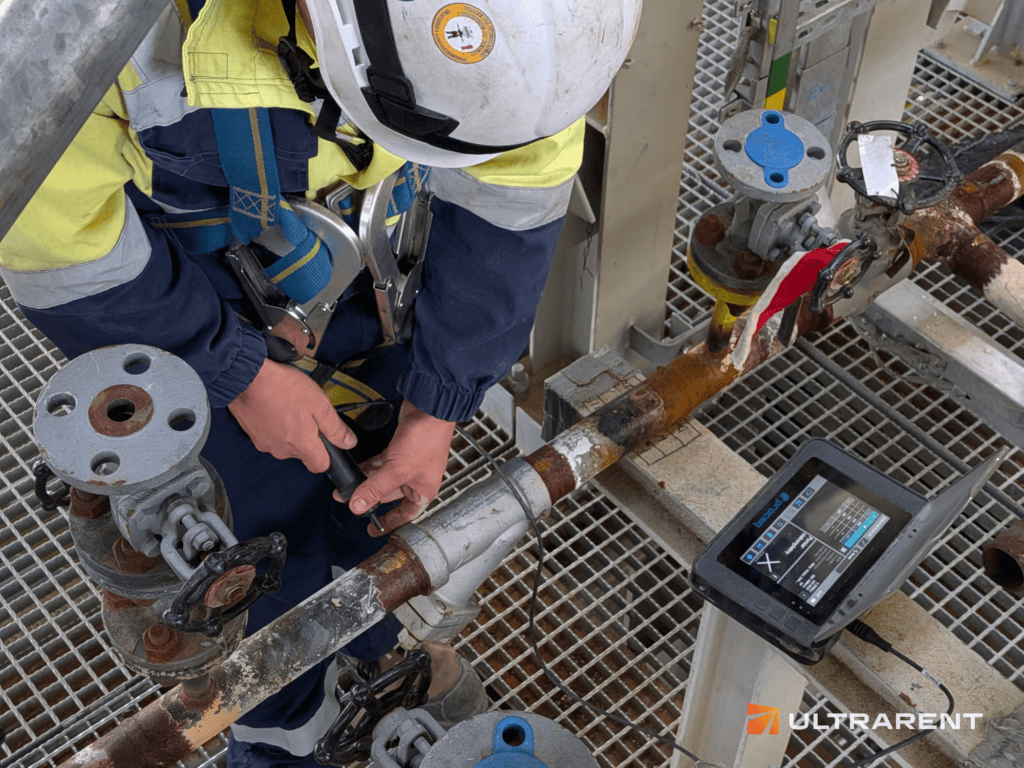

At ULTRARENT we use advanced, portable XRF and OES analysers, which allow inspections to be carried out in the field and results to be obtained instantly, compared with laboratory analyses, which delay manufacturing and assembly processes. Testing is carried out by inspectors certified to EN ISO 9712, level 2 and 3. <strong>Can PMI determine carbon content?</strong> Portable XRF analysers cannot detect carbon or other light elements, so XRF alone cannot distinguish, for example, between steel grade 304 and its low-carbon variant 304L. Where carbon content matters for acceptance, we use OES (optical emission spectrometry), which measures it directly. XRF analysis itself is carried out in accordance with ASTM E1476.

In practice this means:

effective identification of the chemical composition of alloys (e.g. Cr, Mo, Ni in duplex stainless steels)
instant on-site results without sample collection
inspection of pipelines, pressure vessels, industrial installation components and steel structures
verification of base material and filler metal against certificates
testing efficiency thanks to portable devices and fast analysis
Badania PMI

Our approach combines high precision, guaranteeing quality and compliance with the investor's requirements, with high work efficiency aimed at eliminating downtime.

ULTRARENT Sp. z o.o. is a professional non-destructive testing (NDT) laboratory that provides testing and inspection services across the entire country — from Pomerania to the Subcarpathian region, and from Lower Silesia to Podlasie. Thanks to our wide operating reach and qualified team of specialists, we offer comprehensive service for both medium and large enterprises, as well as smaller industrial plants — in every voivodeship of Poland

List of voivodeships we serve:

Lower Silesian Kuyavian-Pomeranian Lesser Poland Masovian Opole Subcarpathian Podlaskie Pomeranian Łódź Lubusz Silesian Świętokrzyskie Greater Poland Kuyavian-Pomeranian Warmian-Masurian West Pomeranian

Book a specialist visit

Order an on-site inspection anywhere in the country — from Pomerania to the Subcarpathian region!

WhatsApp + 48 888 905 440

PMI testing is an effective material inspection method, but it is not always sufficient for a full structural assessment. That’s why at ULTRARENT we advise on the optimal selection of NDT techniques for the specifics of the project, the type of material and the client’s requirements, ensuring a comprehensive inspection strategy.

badania PMI

Hardness testing (HT) using the Leeb and UCI methods are portable, non-destructive techniques for measuring the hardness of metals, enabling testing directly on finished components, structures and installations.

Non-destructive testing

Radiographic testing (RT) is an NDT method in which X-ray or gamma radiation passes through the tested component and creates an image of its internal structure.​
This makes it possible to quickly and reliably detect typical material discontinuities in castings and welded joints, such as cracks, gas pores, inclusions, voids or lack of penetration.

Phased Array Ultrasonic Testing (PAUT) is an advanced NDT method in which a multi-element ultrasonic probe generates an electronically steered beam at multiple angles in a single scan, enabling a full volumetric assessment of welds, castings and structural components.

Ultrasonic testing (UT) is an NDT method in which an ultrasonic wave is introduced into the tested component via a probe, and the reflected signals are analysed in order to detect internal and surface discontinuities.

Complementary testing

Hardness testing (HT) using the Leeb and UCI (Ultrasonic Contact Impedance) methods are portable, non-destructive techniques for measuring the hardness of metals, which can be applied directly to finished components, structures and installations.

Penetrant testing (PT) is an NDT method used to detect discontinuities open to the surface, based on the capillary penetration of a penetrant into cracks.

PMI testing is a non-destructive method of verifying chemical composition, used to confirm the correctness of the materials and filler metal used in the manufacturing and modernisation process.

PMI identifies any deviations in the chemical composition of materials. The method allows the identification of the material grade and the content of alloying elements such as Ni, Cr, Mo or C, in order to compare them with the certificates provided by the manufacturer or distributor.

Unfortunately not. It allows verification of the chemical composition of materials, but does not detect discontinuities arising during the manufacturing process, such as: casting, forging, rolling or welding.



For a full integrity assessment, volumetric or surface non-destructive testing methods such as RT, UT, PAUT, MT or PT should be used.

Thanks to the use of portable devices, the inspection process is very fast and usually takes from several dozen seconds to a few minutes per measurement point, not including preparation and identification of the tested components. In addition, time must be allowed for preparing the test report.

No – for testing we use mobile, portable equipment which easily allows testing to be carried out on-site during assembly in hard-to-reach places. The surface prepared for testing should be smooth and should be cleaned of any contamination and traces of corrosion.

Yes, the test results comply with ASME Sec V and ASTM E1621
