Visual testing (VT) is a basic NDT method involving the assessment of surface condition and component geometry through direct observation or observation using

View Our Services
Badania wizualne VT

according to previously prepared procedures and while ensuring appropriate testing conditions (lighting, access). By choosing us, you rely on experienced inspectors and detailed diagnostics carried out to high standards. Testing is carried out in accordance with EN ISO 17637, by inspectors certified to EN ISO 9712, level 2 and 3.

In practice this means:

carried out as the first stage of inspection – always performed first and treated as mandatory for most products/components
allow quick confirmation of workmanship quality and identification of areas requiring further testing
detection of surface discontinuities, the presence of corrosion and erosion, mechanical damage, leaks and shape non-conformities

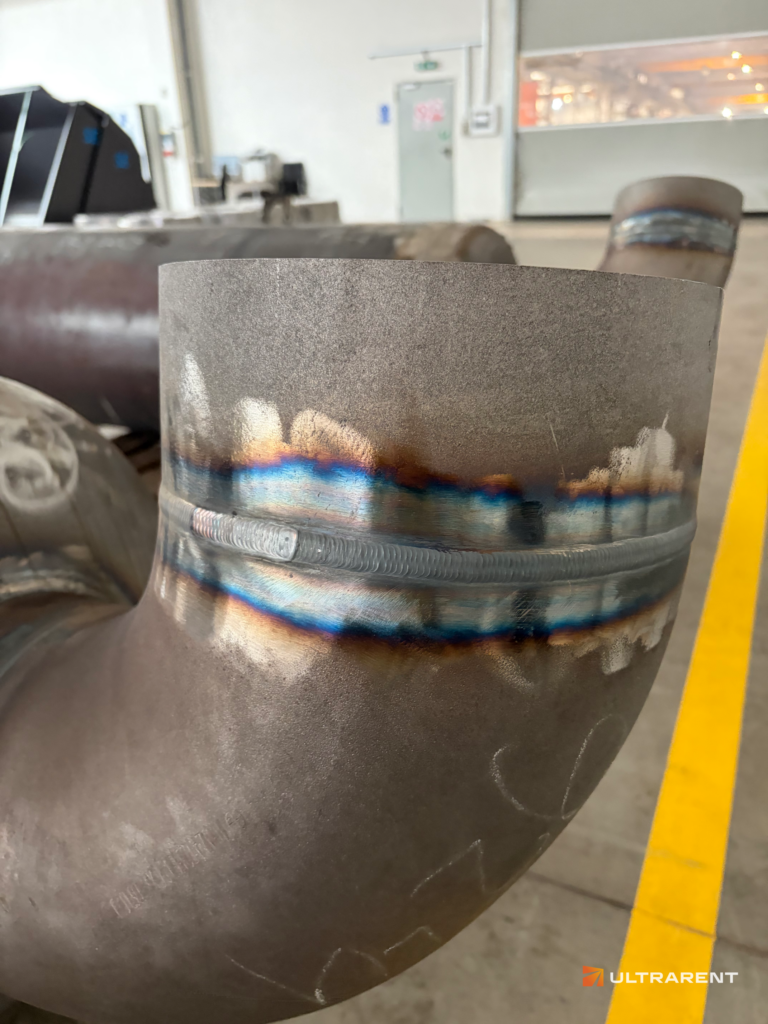

inspection of welded joints of steel structures, pipelines, tanks and pressure equipment components
checking correct assembly at the manufacturing stage
Badania wizualne (VT)

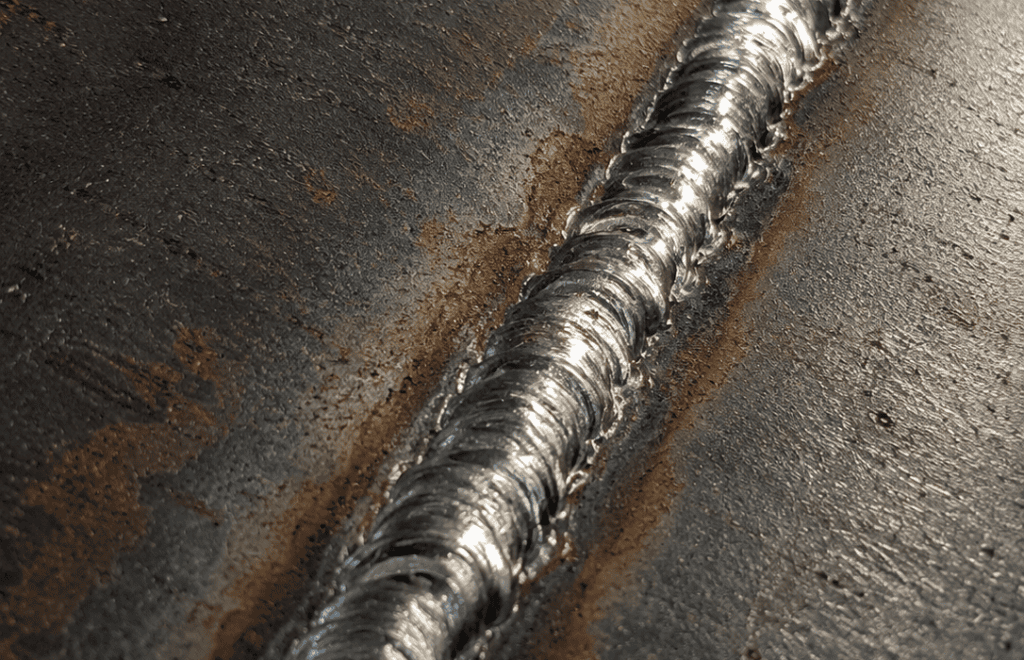

The method allows detection of surface cracks, corrosion, porosity and other surface welding discontinuities, assembly errors and geometric deviations.

ULTRARENT Sp. z o.o. is a professional non-destructive testing (NDT) laboratory that provides testing and inspection services across the entire country — from Pomerania to the Subcarpathian region, and from Lower Silesia to Podlasie. Thanks to our wide operating reach and qualified team of specialists, we offer comprehensive service for both medium and large enterprises, as well as smaller industrial plants — in every voivodeship of Poland

List of voivodeships we serve:

Lower Silesian Kuyavian-Pomeranian Lesser Poland Masovian Opole Subcarpathian Podlaskie Pomeranian Łódź Lubusz Silesian Świętokrzyskie Greater Poland Kuyavian-Pomeranian Warmian-Masurian West Pomeranian

Book a specialist visit

Order an on-site inspection anywhere in the country — from Pomerania to the Subcarpathian region!

WhatsApp + 48 888 905 440

VT testing is not always sufficient. The method is naturally limited to discontinuities visible on the surface and requires the ability to observe the tested area. Please contact our experts to discuss the details of the inspection.

Badania wizualne (VT)

In industry there is no room for chance. The quality of welds, pressure components and steel structures must be confirmed reliably, repeatably and in accordance with technical requirements.

Surface testing methods:

Magnetic particle testing (MT) is a non-destructive testing method used to detect surface and near-surface discontinuities in ferromagnetic materials such as carbon and low-alloy steels.

Penetrant testing (PT) is an NDT method used to detect discontinuities open to the surface, based on the capillary penetration of a penetrant into cracks.

Volumetric testing methods:

Radiographic testing (RT) is an NDT method in which X-ray or gamma radiation passes through the tested component and creates an image of its internal structure.​
This makes it possible to quickly and reliably detect typical material discontinuities in castings and welded joints, such as cracks, gas pores, inclusions, voids or lack of penetration.

Ultrasonic testing (UT) is an NDT method in which an ultrasonic wave is introduced into the tested component via a probe, and the reflected signals are analysed in order to detect internal and surface discontinuities.

Phased Array Ultrasonic Testing (PAUT) is an advanced NDT method in which a multi-element ultrasonic probe generates an electronically steered beam at multiple angles in a single scan, enabling a full volumetric assessment of welds, castings and structural components.

VT testing is used to assess the quality and condition of a component’s surface and shape. It is carried out as direct and remote inspection. It is used as preliminary and acceptance inspection, as well as in the in-service diagnostics of steel structures and pressure equipment, where a quick assessment of accessible surfaces is key.

The best detected are surface discontinuities and visual signs of degradation: surface-breaking cracks, corrosion, pitting, mechanical damage and geometric non-conformities. Subsurface discontinuities generally require the use of volumetric methods such as UT or RT.

Direct visual testing means an uninterrupted optical path from the inspector’s eye to the tested area, while remote testing uses additional tools and devices (e.g. borescopes, videoscopes, cameras) to reach hard-to-access locations. Remote visual testing is essential when inspecting the inside of vessels, pipelines and other confined spaces where direct observation is not possible.

Often yes, provided the observation conditions required by the standard or procedure can be ensured. When geometry, shape or limited access make it impossible to meet the requirements, remote solutions (RVT) or other NDT methods are used.

The test result is normally described in a report together with the location and assessment of the discontinuities found, in relation to the required acceptance criteria. The report is supplemented with sketches or photographs. In the case of remote visual testing (RVT), the image is recorded using photo or video.

The VT method mainly detects surface indications and does not replace methods for detecting internal discontinuities. The effectiveness of visual testing depends on the test conditions, such as: lighting, viewing angle and access. The method is largely dependent on the competence of the personnel, which is why it is worth relying on certified and experienced staff.
